Crown P/N: CRN-1130

Description: N (Female) Panel Receptacle
LMR-195, RG-58
Body: Nickel / Brass
Insulation: Teflon
Contact: Gold / BeCu 50 ohm
Notes:

Similar to Amphenol #82-5372

** ROHS COMPLIANT **

Click here for printable spec. sheet.

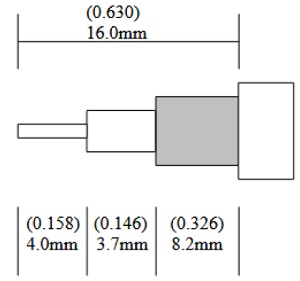

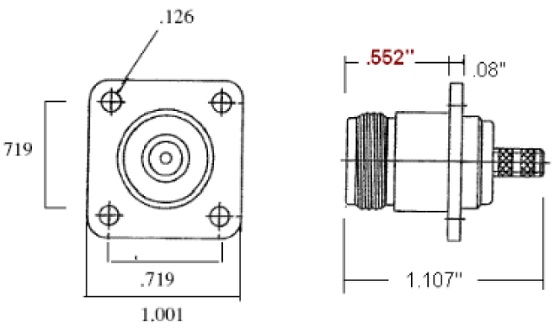

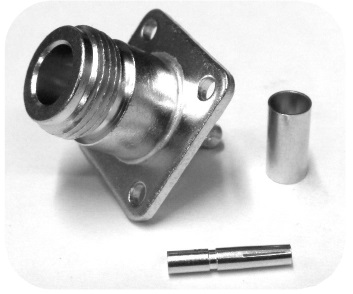

CRN-1130 Photo CRN-1130 Diagram CRN-1130 Stripping Dimensions

*Measurements are in millimeters (inches)
