Pricing
1-9 $7.52
10-24 $6.95
25+ Send RFQ
* Prices subject to change without notice. Contact sales@crownrf.com f/current pricing and availability.
Related Items
CRB-2726CRB-2726
CRT-3803WBCRT-3803WB
CRN-1155CRN-1155

Crown P/N: CRN-1315

Description: N (Male) RG-316 (dual shield)
Body: Tri-Metal (white bronze) / Brass
Insulation: Teflon
Contact: Gold / Brass 50 ohm
Notes:

Similar to Amphenol #172171

** ROHS COMPLIANT **

Click here for printable spec. sheet.

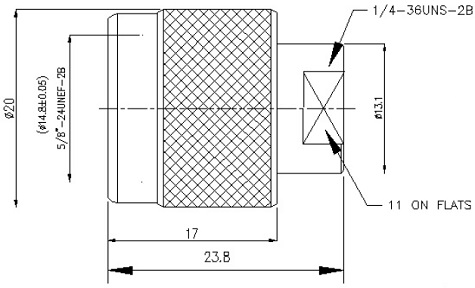

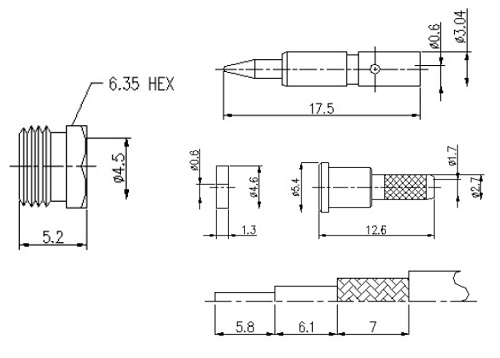

CRN-1315 Diagram CRN-1315 Stripping Dimensions

*Measurements are in millimeters (inches)
